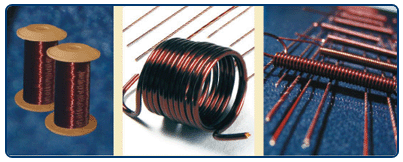

ENAMELED COPPER WIRES, ROUND


DESIGNATION
POLYESTER MODIFIED POLYESTERIMIDE DUAL COATED WITH POLYAMIDE-IMIDE POLYIMIDE
TEMP-INDEX NORMS
155
IEC 60317-20
NEMA MW
1000/79C
180
IEC 60317-51
NEMA MW 1000/82C
200
IEC60317-13
NEMA MW 1000/35C
UL approved *
220
IEC 60317-26*
NEMAMW1000/37C
UL approved *
CHEMICAL BASE OF THE INSULATION
Modified Polyester Thermal Stable Polyesterimide THEIC-Modified Polyesterimide base coat with a Polyamide-imide overcoat.
Polyamide-imide

RANGE OF DIMENSIONS

Standard Wires Grade 1
Grade 2

IEC 60317-0-1



0.60...3.15mm
0.60...4.00 mm

IEC 60317-0-1



0.60...3.15 mm
0.60...4.00mm

IEC 60317-0-1



0.60...2.00 mm.
0.60...4.00 mm

IEC 60317-0-1



0.60...2.00 mm
0.60...4.00 mm

SPECIAL PROPERTIES
Good thermal characteristic High thermal stability
Excellent thermal and chemical properties
Suitable for windings which are subjected to constantly high temperatures and
Outstanding mechanical chemical and thermal properties
COMMON USES
Small motors up to class 155
Encapsulated windings
Low power transformers
Relay and contactor coils
Magnet coils

Small motors and inding up to class 155/180
Encapsulated windings
Low power transormers
Relay and contactor coils
Magnet coils

Windings for class H..200 AC and DC Motors
Dry and oil-filled transformers
Contactor coils
Magnet coils
Motors for hermetic compressors, washing machines, etc.,

Windings for class H...200 AC and DC machines
Contactor and magnet coils subjected to
extreme conditions
Special motors Compressors, washing machines, etc..
COMPARABLE PROPERTIES
Pencil Hardness
as received
after solvent test

Heat-schock
Cut-trough




4H
>H

175"c
240°c




4H
>3H

200°c
300°c




5 H...6H
>H

220°c
320°c




5 H...6H
>H

2405c
320°c

Our UL File No.: E 326007
