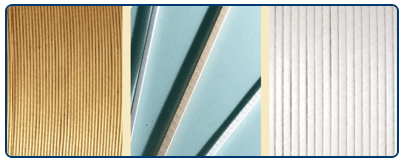

TAPE-COVERED RECTANGULAR COPPER CONDUCTORS


PRODUCT RANGE MICA/MOMAX TAPED POLYIMIDE POLYIMIDE + GLASS OR DAGLAS POLYESTER GLASS COVERED
TEMP-INDEX 155/180
240
240
155

TYPE OF INSULATION

Mica/Polyester Tape
Polyimide foil coated on one or both sides with a FEP (Teflon®-adhesive e.g. Kapton ® FN.)
Polyimide foil coated on one or both sides with a FEP (Teflon3-adhensive with an additional glass/ polyester or varnish impregnated glass lapping
Polyester Taped & Fibre glass covered varnish bonded
INSULATION OPTIONS
1 to 3 lapped tape layers -
possibility to lap with polyester film - butt lapped or overlapped tape layers
overlap 33 to 67% Nomax 1 to 4 layers of 3 layer buttlap & top layer over lap

1 or 2 lapped fused
tape layers lapped tape layers in same direction or cross lapped
overlap 33 to 67%

1 or 2 lapped fused
tape lapped tape layers in same direction or cross lapped
overlap 33 to 67%
1 or 2 lapped layers
of glass or glass/
polyester fibre blend/ varnish bonded.

1 or 2 lapped tape layers of polyester tape same/opposite direction 50% overlapp double glass lapped in opposite direction varnished bonded.
STANDARDS
  IEC 60317-44 (rectangular)

CONDUCTOR MATERIAL 2 Bare soft copper
Bare soft copper
Bare soft copper
Bare soft copper
STANDARD RANGE OF DIMENSIONS
Cross-section (mm) (rectangular)
5 to 50
5 to 50
5 to 50
5 to 50
Width (mm)
4 to 16
4 to 16
4 to 16
4 to 16
Thickness (mm)
1 to16
1 to 16
1 to 16
1 to16
SPECIAL PROPERTIES
Stiffness test
Very good dielectric strength
Outstanding thermal performance

Very good dielectric strength
Outstanding thermal erformance
Mechanical resistance

Very good dielectric properties
COMMON USES
High voltage motors
Wind mill generators
Traction motor
Motor for heavy duty applications (rolling mills, mining machines, oil pumps etc.,
Aircraft generators and marine engines
High temperature coils
Traction motors
Stirring coils
High voltage motors
