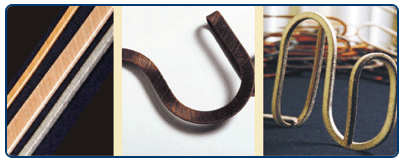

FIBRE-COVERED RECTANGULAR COPPER STRIPS


PRODUCT RANGE FIBRE GLASS COVERED DAGLAS POLY GLASS COVERED
TEMP-INDEX

155, 180 & 200

155. 180 or 200

155,180 & 200
TYPE OF INSULATION
E-Glass, alkali free, varnish bonded
Glass/Polyester fibre blend (Dacron), varnish impregnated or not
Glass/Polyester fibre blend (Dacron) and varnish impregnated glass fibres
INSULATION OPTIONS
1 or 2 lapped layers, 2 cross lapped layers in general
1 or 2 lapped layers, 2 cross lapped layers in general
1 or 2 cross lapped layers of polyester & 1 or 2 glass lapped vamish bonded
TYPE OF IMPRECATION
Epoxy (TI-155) Polyester-imide (TI-180) Silicon (TI-200)
Epoxy (TI-155) Polyester-imide (TI-180) Silicon (TI-200)
Epoxy (TI-155) Polyester-imide (TI-180) Polyamide-imide
STANDARDS
IEC 60317-0-4,
IEC 60317-32




CONDUCTOR MATERIAL
Annealed Bare copper
Enamelled copper

Annealed Bare copper
Enamelled copper

Annealed Bare copper
Enamelled copper
STANDARD RANGE OF DIMENSIONS
Cross-section (mm) (rectangular)
5 to 50

5 to 50

5 to 50
Width (mm)
4 to 16
4 to 16
4 to 16
Thickness (mm)
1 to 5 1 to 5



1 to 5



SPECIAL PROPERTIES
Thermal resistance at constantly high temperatures
Mechanical resistance
Resistance to abrasion and scraping
Chemical resistance
Covering with high bonding strength
Resistance to abrasion and scraping

Excellent thermal bonding properties
Excellent mechanical properties (adhesion, flexibility)


COMMON USES
Roebel bars in power generators
HV rotating electro-machines
Industrial LV motors
Dry type transformers

Roebel bars in power generators
HV rotating electro-machines
Industrial LV motors
Dry type transformers
HV rotating machines
