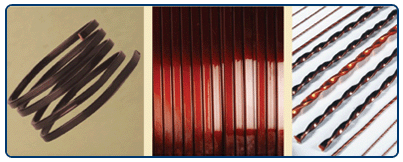

ENAMELED COPPER WIRES, RECTANGULAR


DESIGNATION POLYESTER MODIFIED POLYESTERIMIDE DUAL COATED WITH POLYAMIDE-IMIDE POLYIMIDE
TEMP-INDEX NORMS
155
IEC60317-18
180
IEC 60317-29
NEMA MW 1000/36C
200
NEMA MW 1000
220
IEC 6031 7-47
NEMA MW 1000/38C
CHEMICAL BASE OF THE INSULATION Modified Polyester Modified Polyestnmide with Polyamide - imide overcoat Polyamide-imide with modified
polyamide-imide overcoat
Polyimide

RANGE OF DIMENSIONS Standard Wires

IEC 60317-0 2
4 Sq mm to 72 Sq mm
IEC 60317-0-2
4 Sq mm to 72 Sq mm
IEC 60317-0-2
4 Sq mm to 72 Sq mm
IEC 60317-0-2
4 Sq mm to 72 Sq mm
SPECIAL PROPERTIES
Excellent bending properties
High flexibility of the insulation
Good impact strength and resistance to abrasion
High mechanical properties

Excellent thermal and chemical properties
Suitable for windings which are subjected to constantly high temperatures and mechanical stress
Outstanding mechanical, chemical and thermal properties
Suitable for windings which are subjected to constantly high temperatures and mechanical stress
Highest thermal properties
Outstanding chemical and mechanical properties
COMMON USES
Dry & oil-filled transformers upto highest performance
Electrical equipment

Windings of AC and DC motors of class H...200
Dry and oil-filled transformers
Contactor coils
Magnet coils


Windings in highly stressed AC and DC motors of class H...200
Contactor coils
Magnet coils
Dry and oil-filled transformers

Windings with service temperatures up 220 c
Motors and generators for the aviation and marine industries
For windings requiring a high degree of reliability
COMPARABLE PROPERTIES
Pencil Hardness
as received
after solvent test

Heat-schock




5H
>H


150°c




5H
>H


220°c




5 H...6H
>H


240°c




5H
>H


260°c
